Ballo

GOALS: create a robot that uses a color sensor to follow a line
SKILLS: CAD, ESP32, Python, Laser Cutting

This week's design prompt for my Robotics class was to create a line following robot that operates using color sensors. The night after this prompt was announced, my friend became the proud parent of a Sphero and I was really jealous and wanted my own.

Hardware

I designed the robot using Fusion360 and fabricated it mostly through 3D printing with a little bit of laser cutting acrylic.

Color Sensing

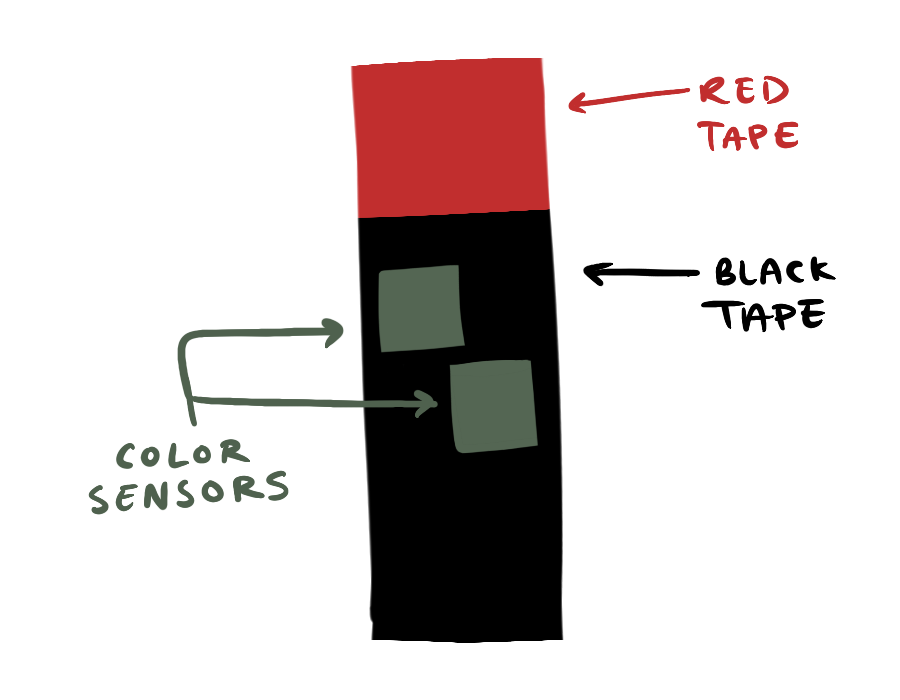

The color sensors are aligned vertically and slightly offset from each other. This way, when it detects the white background it knows that it is off the line, but also it is still able to dectect when the line changes colors.

My partner Kilder wrote the majority of the code, but here's what it looks like:

see the code!

I dont want to look at the code anymore!!


from machine import Pin, PWM, I2C
import time

# --------------------------
# Onboard button
# --------------------------
button = Pin(34, Pin.IN)
print("Waiting for button (D34) press...")
while button.value() == 1:
    time.sleep(0.05)
print("Button pressed! Starting line following...")
time.sleep(0.2)

# --------------------------
# I2C color sensors
# --------------------------
i2c_left = I2C(0, scl=Pin(22), sda=Pin(21), freq=400000)
i2c_right = I2C(1, scl=Pin(25), sda=Pin(26), freq=400000)
VEML_ADDR = 0x10

REG_CONF  = 0x00
REG_RED   = 0x08
REG_GREEN = 0x09
REG_BLUE  = 0x0A
REG_WHITE = 0x0B

def veml_init(i2c):
    i2c.writeto_mem(VEML_ADDR, REG_CONF, bytes([0x00]))
    time.sleep(0.1)

def veml_read(i2c):
    def read16(reg):
        data = i2c.readfrom_mem(VEML_ADDR, reg, 2)
        return int.from_bytes(data, 'little')
    return read16(REG_RED), read16(REG_GREEN), read16(REG_BLUE), read16(REG_WHITE)

veml_init(i2c_left)
veml_init(i2c_right)

# --------------------------
# Encoder class
# --------------------------
class Count:
    def __init__(self, A_pin, B_pin):
        self.A = Pin(A_pin, Pin.IN)
        self.B = Pin(B_pin, Pin.IN)
        self.counter = 0
        self.A.irq(self.cb, Pin.IRQ_RISING | Pin.IRQ_FALLING)
        self.B.irq(self.cb, Pin.IRQ_RISING | Pin.IRQ_FALLING)

    def cb(self, pin):
        other, inc = (self.B, 1) if pin == self.A else (self.A, -1)
        self.counter += -inc if pin.value() != other.value() else inc

    def value(self):
        return self.counter

# --------------------------
# Motor class
# --------------------------
class Motor:
    def __init__(self, pwm_pin, dir_pin, encA, encB):
        self.pwm = PWM(Pin(pwm_pin))
        self.pwm.freq(1000)
        self.dir = Pin(dir_pin, Pin.OUT)
        self.encoder = Count(encA, encB)
        self.stop()

    def stop(self):
        self.pwm.duty_u16(0)
        self.dir.value(0)

    def set_speed(self, direction=1, speed_percent=50):
        self.dir.value(direction)
        self.pwm.duty_u16(int(speed_percent / 100 * 65535))

    def position(self):
        return self.encoder.value()

# --------------------------
# Initialize motors
# --------------------------
left_motor  = Motor(pwm_pin=13, dir_pin=12, encA=32, encB=39)
right_motor = Motor(pwm_pin=14, dir_pin=27, encA=33, encB=36)

# --------------------------
# Color detection & smoothing
# --------------------------
colors_left = {'black': (90,91,53,222), 'red': (201,124,77,393),
               'green': (168,213,86,369), 'blue': (150,220,198,399),
               'white': (421,518,339,852)}
colors_right = {'black': (92,91,51,229), 'red': (206,128,78,403),
                'green': (167,209,84,374), 'blue': (154,217,185,406),
                'white': (423,514,316,862)}

def make_ranges(refs, tol=40):
    ranges = {}
    for c,v in refs.items():
        ranges[c] = ((v[0]-tol,v[0]+tol),(v[1]-tol,v[1]+tol),(v[2]-tol,v[2]+tol),(v[3]-tol*2,v[3]+tol*2))
    return ranges

ranges_left  = make_ranges(colors_left)
ranges_right = make_ranges(colors_right)

def classify_color(r,g,b,w,ranges):
    for color,(rr,gg,bb,ww) in ranges.items():
        if rr[0]<=r<=rr[1] and gg[0]<=g<=gg[1] and bb[0]<=b<=bb[1] and ww[0]<=w<=ww[1]:
            return color
    return "Unknown"

window_size = 5
left_history  = []
right_history = []

def add_history(history,value):
    history.append(value)
    if len(history) > window_size:
        history.pop(0)

def majority_vote(history):
    counts = {}
    for item in history:
        counts[item] = counts.get(item,0)+1
    max_count = 0
    winner = "Unknown"
    for k,v in counts.items():
        if v>max_count:
            max_count=v
            winner=k
    return winner

# --------------------------
# Main loop: shorter bursts + rest
# --------------------------
BASE_SPEED = 10
TURN_SCALE = 0.3
RUN_DURATION = 0.5   # seconds per motor burst
REST_DURATION = 0.5  # seconds rest between bursts

print("=== LINE FOLLOWING MODE ===")

try:
    while True:
        # Read color sensors
        lr,lg,lb,lw = veml_read(i2c_left)
        rr,rg,rb,rw = veml_read(i2c_right)
        add_history(left_history, classify_color(lr,lg,lb,lw, ranges_left))
        add_history(right_history, classify_color(rr,rg,rb,rw, ranges_right))

        sm_left  = majority_vote(left_history)
        sm_right = majority_vote(right_history)

        # Decide motor speeds: black = full, white = slower (turn)
        left_speed  = BASE_SPEED if sm_left=='black' else BASE_SPEED*TURN_SCALE
        right_speed = BASE_SPEED if sm_right=='black' else BASE_SPEED*TURN_SCALE

        # Run motors simultaneously
        left_motor.set_speed(direction=1, speed_percent=left_speed)
        right_motor.set_speed(direction=1, speed_percent=right_speed)

        # Burst duration
        time.sleep(RUN_DURATION)

        # Stop motors
        left_motor.stop()
        right_motor.stop()

        # Rest period
        time.sleep(REST_DURATION)

        # Debug
        print(f"Left: {sm_left} | Right: {sm_right} | Encoders: L={left_motor.position()} R={right_motor.position()}")

except KeyboardInterrupt:
    print("\nStopping motors...")
finally:
    left_motor.stop()
    right_motor.stop()
    left_motor.pwm.deinit()
    right_motor.pwm.deinit()
    print("Motors stopped ✅")

Challenges & Future Improvements

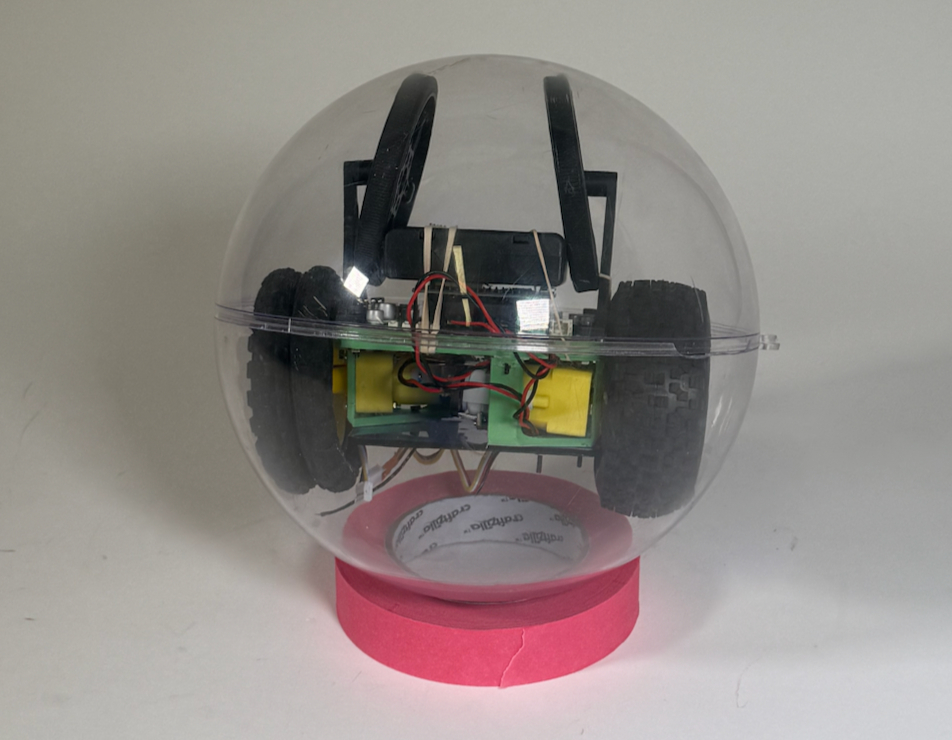

Designing everything to fit within the ball was hard, but not in the sense that there was not enough space. It was actually the fact that there was too much space above and below the internal robot that made things difficult, and designing it to be stable, but mobile inside was definitely a challenge. My solution to this was to put a wheels above the main robot to fill up space above the robot.

Even after all that, when we tested the robot we saw that the center of gravity was too high and instead of wanting to roll vertically, it wanted to roll horizontally. I think we're just gonna let it be a horizontal robot now.
