Laser Drilling @ NCKU
GOALS: Design a COMSOL simulation that can simulate laser drilling on Aluminum Oxide and Aluminum Nitride & design an experiment to determine optimal laser drilling parameters
SKILLS: COMSOL Multiphysics, Experimental Design, Simulation Validation, MATLAB

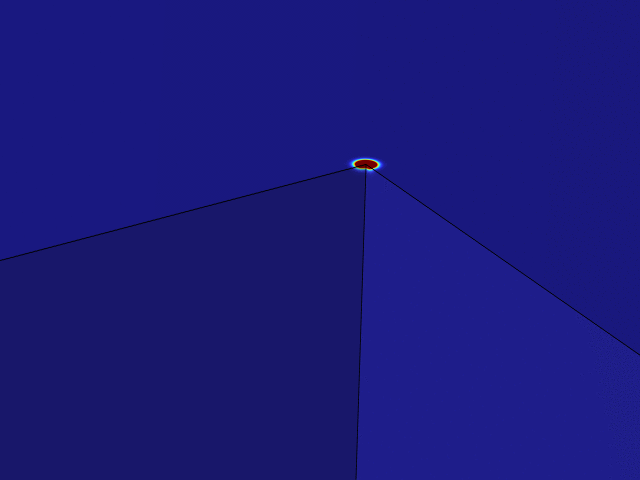

I spent the summer of 2025 in Taiwan studying laser drilling manufacturing on semiconducor materials under Professor Yu-Lung Lo. This simulation uses a femtosecond laser at 50 kHz & 400 laser pulses at a peak power of 24 W.
Full Research Presentation
Experiment

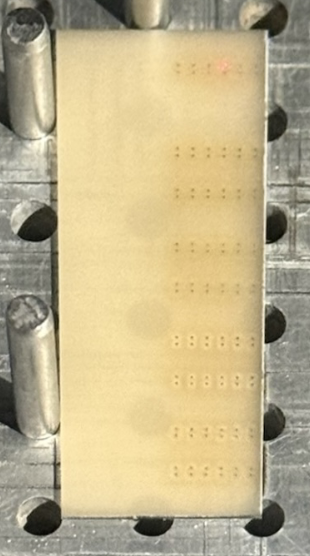

Each column of laser drilled holes represents a different set of laser parameters.

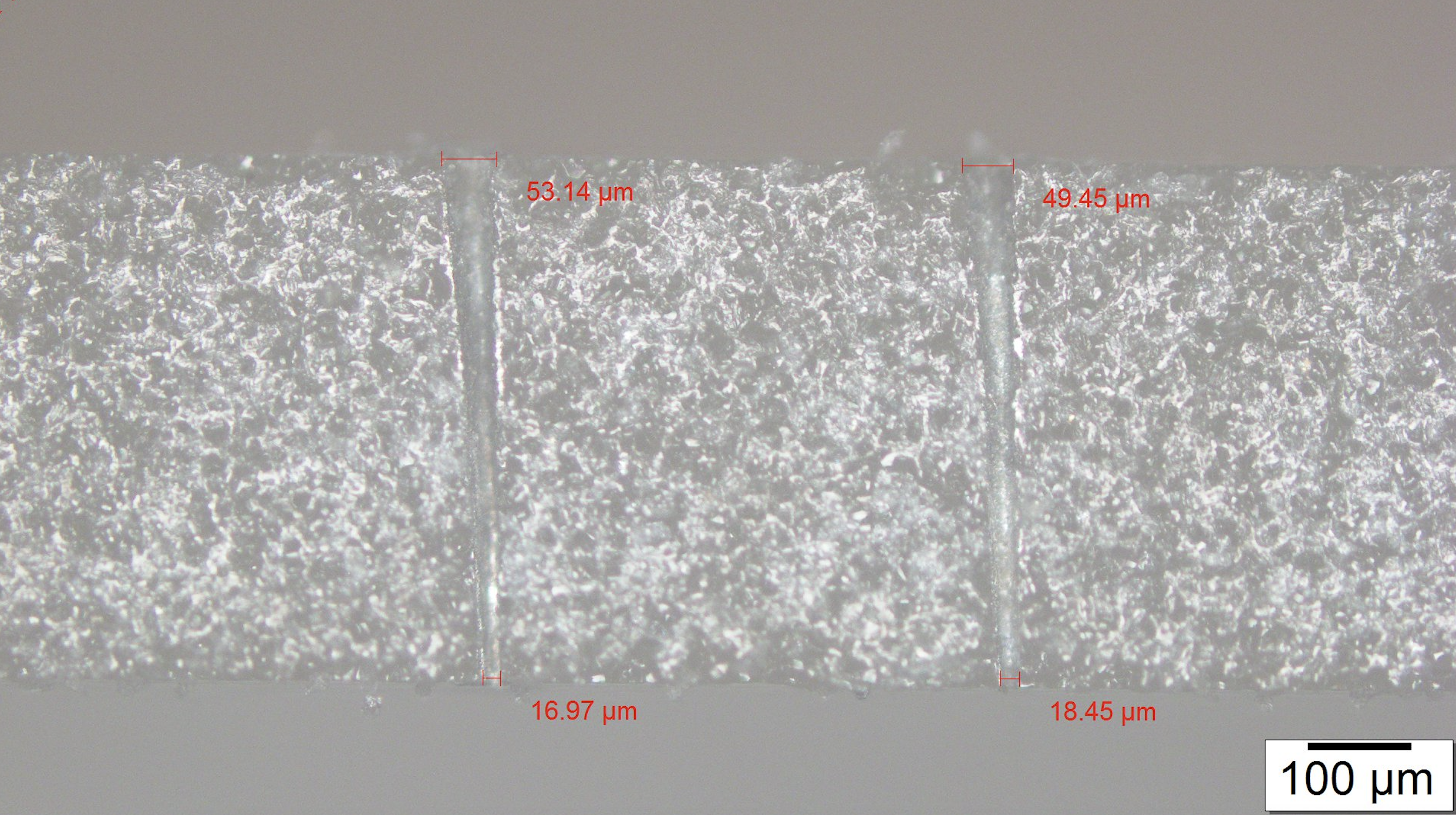

We grided the samples to find the cross section and take measurements to define the taper ange.

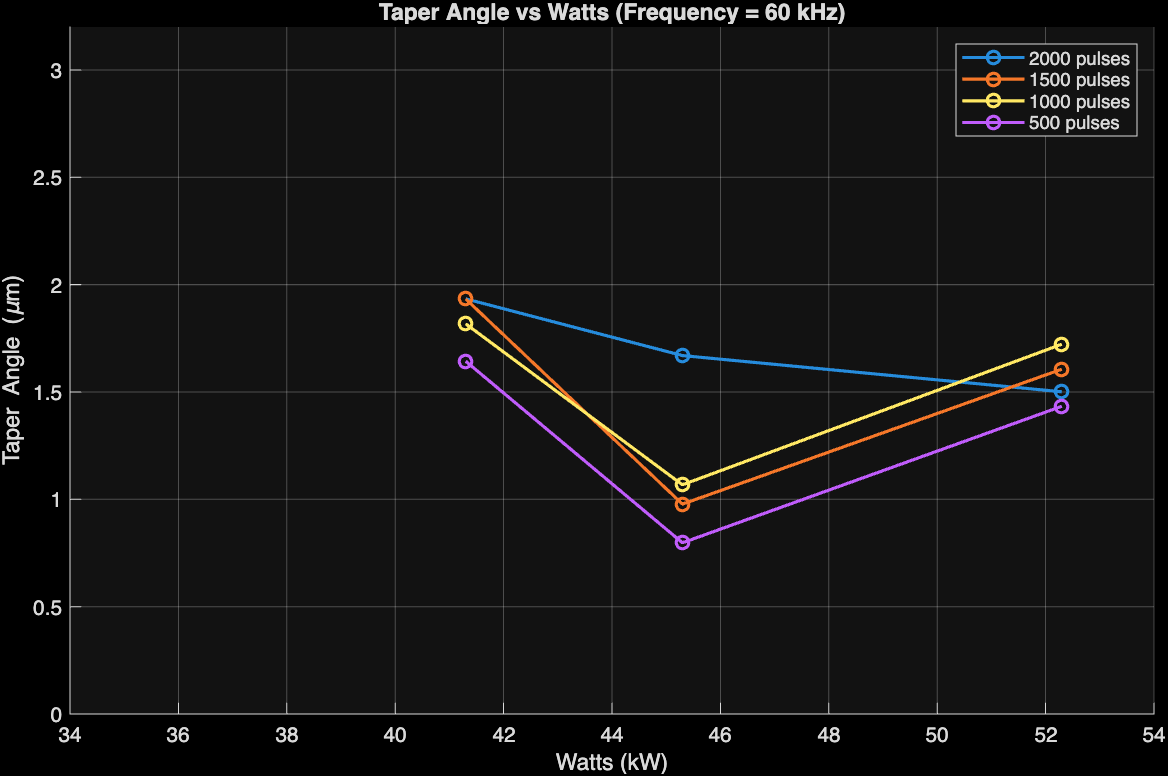

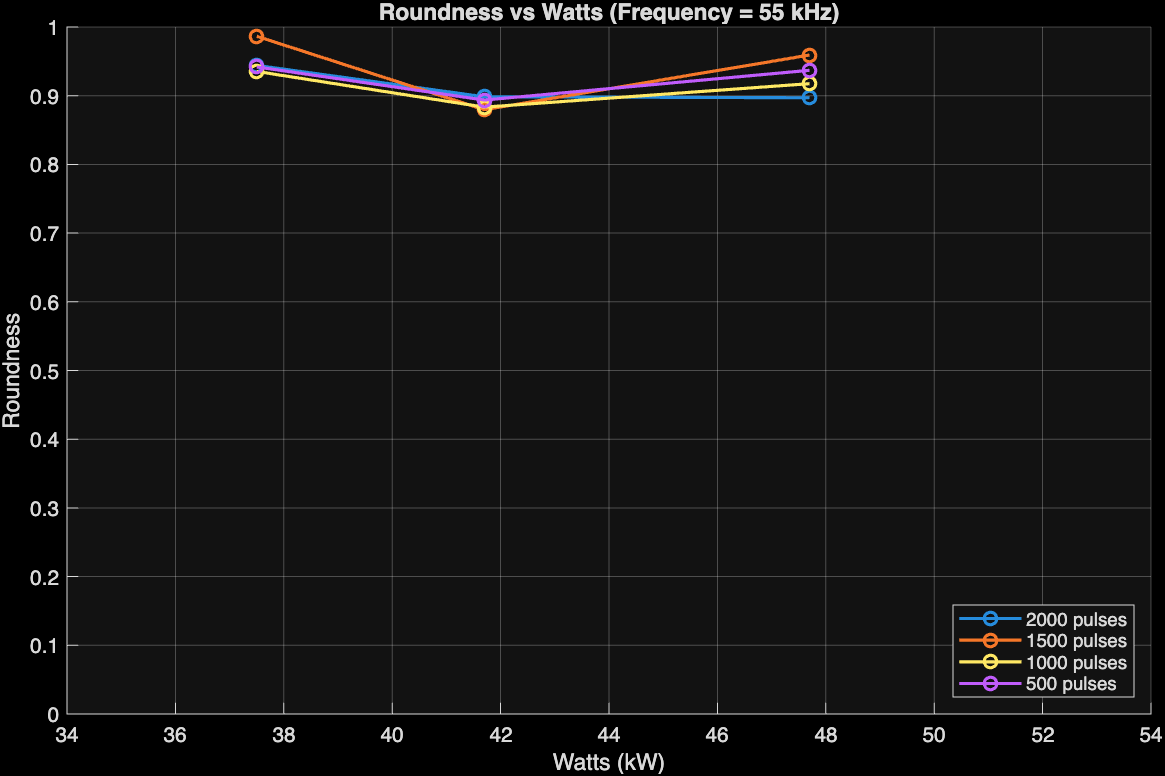

Plotted Results
Selected results after data collection
