Cheater's Pinball

GOALS: Create a pinball game that utilizes machine learning to give the player an advantage
SKILLS: Machine Learning, Python, Laser Cutting, 3D Printing

This week's design prompt for my Intro to Robotics course was to create a game that incorporates a "smart motor" - basically a motor that can be trained with a machine learning algorithm & accelerometer. We ended up using a K-means algorithm to train the motor to tilt the playing field left or right when the user points the accelerometer at certain trained positions.

Code

When you boot up the game, you first have to train the machine learning algorithm by telling it where you want the tilt left, center, and right commands to be. To do this, we used a K-means algorithm. Once these data points were collected, the player could in real time control the tilting of the board just by turning the accelerometer.

see the code!

I dont want to look at the code anymore!!


'''
ME30 Project 2 Code
written by Theo Prince, Katie Kostak, and Sol Brizuela Baez
lis3dh library and Count and Motor classes provided by instructor Milan
This code is written for a pinball machine, with the added functionality of
a motor that tilts the board based on the position of an accelerometer
'''
from machine import Pin
from machine import PWM
import time
import lis3dh
import time
import array

# Class used to read data from the encoder
class Count(object):
	def __init__(self,A,B):
		self.A = Pin(A, Pin.IN)
		self.B = Pin(B, Pin.IN)
		self.counter = 0
		self.A.irq(self.cb,self.A.IRQ_FALLING|self.A.IRQ_RISING) #interrupt on line A
		self.B.irq(self.cb,self.B.IRQ_FALLING|self.B.IRQ_RISING) #interrupt on line B

	def cb(self,msg):
		other,inc = (self.B,1) if msg == self.A else (self.A,-1) #define other line and increment
		#self.counter += -inc if msg.value()!=other.value() else  inc

	def value(self):
		return self.counter

#Class used to interact with the motor and encoder together
class Motor(Count):
	def __init__(self,m1,m2, A, B):
		self.enc = Count(A,B)
		self.M1 = PWM(m1, freq=50, duty_u16=0)
		self.M2 = PWM(m2, freq=50, duty_u16=0)
		self.stop()

	def pos(self):
		return self.enc.value()

	def stop(self):
		self.M1.duty_u16(0)
		self.M2.duty_u16(0)

	def start(self, direction = 0, speed = 40):
		if direction:
			self.M1.duty_u16(int(speed*65535/100))
			self.M2.duty_u16(0)
		else:
			self.M1.duty_u16(0)
			self.M2.duty_u16(int(speed*65535/100))

	def move_pos(self, position, direction, speed = 40):

		print("moving")

		if direction:
			self.M1.duty_u16(int(speed*65535/100))
			self.M2.duty_u16(0)
		else:
			self.M1.duty_u16(0)
			self.M2.duty_u16(int(speed*65535/100))
		while True:
			print(self.pos())
			if abs(self.pos()) > position:
				self.stop()
				break
			time.sleep(.1)

# Function used to flip servo arms to push the ball up the board
def flip_hands():
	#Go from 90 degrees to 0 degrees)
	print("im gonna flip out!!!")

	servo2.duty_ns(2000*1000)
	servo1.duty_ns(2000*1000)
	time.sleep(1)

	servo2.duty_ns(500*1000)
	servo1.duty_ns(500*1000)


# Recursive function to find ideal centroids
# This uses a K-means algorithm to sort data into discrete sets
# and find the center of gravity of the group
def find_centroids(data,centroids, total_change):

	# Stop condition: centroid is no longer moving a significant amount
	if total_change < .1:
#       # Return the three points in the middle of their respective groups
		return centroids

	# Recursive case
	else:
		# Initialize local variables
		total_change = 0
		groups = [[],[],[]]
		min_dist = 1
		group = 0

		# For each data point, find the nearest centroid and assign the data
		# point to that centroid
		for i in range(len(data)):
			min_dist = 1
			#find nearest centroid
			for j in range(len(centroids)):
				if abs(centroids[j]- data[i]) < min_dist:
					min_dist = abs(centroids[j]- data[i])
					group = j
			# Add data point to group corresponding to the nearest centroid
			groups[group].append(data[i])
		# Find new centroids by taking the average value of each group
		for i in range(len(groups)):
			total = 0
			for j in range(len(groups[i])):
				total += groups[i][j]
			#update total_change to compare to threshold
			print(groups)
			total_change += abs(centroids[i]-(total / len(groups[i])))
			#overwrite previous centroid values
			centroids[i] = total / len(groups[i])

		# Call the function again with same data, new centroids, and new total_change
		return find_centroids(data, centroids, total_change)

# Function to collect data from user on accelerometer position corresponding to each position
def train():
	try:
		# Initialize the accelerometer with ESP32 default pins
		h3lis331dl = lis3dh.H3LIS331DL(sda_pin=21, scl_pin=22)

		# Read WHO AM I register
		who_am_i = h3lis331dl.read_who_am_i()
		print(f"WHO AM I: 0x{who_am_i:02X}")

		# Prepare user for training
		print("Training: tilt left")
		time.sleep(2)
		start = time.time()
		while time.time() < (start + 5):
			# Read raw acceleration data

			accl_raw = h3lis331dl.read_accl()
			accl_g = h3lis331dl.read_accl_g()
			global data
			data.append(accl_g['x'])
			print(data)
			time.sleep(1)

		print("Training: tilt middle")
		time.sleep(2)
		start = time.time()
		while time.time() < (start + 5):

			accl_raw = h3lis331dl.read_accl()
			accl_g = h3lis331dl.read_accl_g()
			global data
			data.append(accl_g['x'])
			print(data)
			time.sleep(1)

		print("Training: tilt right")
		time.sleep(1)
		start = time.time()
		while time.time() < (start + 5):
			accl_raw = h3lis331dl.read_accl()
			accl_g = h3lis331dl.read_accl_g()
			global data
			data.append(accl_g['x'])
			print(data)
			time.sleep(1)

		return data

	except KeyboardInterrupt:
		print("Measurement stopped by user")
	except Exception as e:
		print(f"Error: {e}")

data = []
num_centroids = 3
left_centroid = -1
middle_centroid = 0
right_centroid = 1

#declare arbitrary, intial centroids
centroids = [-1,0,1]
total_change = 10

data = train()
centroids = find_centroids(data, centroids, total_change)

servo1 = PWM(Pin(4), freq=50, duty_u16=0)
servo2 = PWM(Pin(5), freq=50, duty_u16=0)

button = Pin(34, Pin.IN)

motor1 = Motor(12,13, 25,26)
h3lis331dl = lis3dh.H3LIS331DL(sda_pin=21, scl_pin=22)
dist_to_closest = 10

#motor1.move_pos(50, 0)
left = False
right = False
stopped = False
while True:
	print("here")
	pos = h3lis331dl.read_accl_g()['x']
	print(pos)
	closest = 0
	dist_to_closest = 10

	if(button.value() == 0):
		print("im flippin my shi ;:-)")
		flip_hands()

	for i in centroids:
		#print("checking distances")
		if abs(pos-i) < dist_to_closest:
			dist_to_closest = abs(pos-i)
			closest = i
			#print (closest)
	if closest == min(centroids):
		print("moving motor right")
		print(left)
		if not left:
			motor1.start(1)
			time.sleep(.1)
			motor1.stop()
			last = 1
			left = True
			stopped = False
		else:
			print("already right")
	elif closest == max(centroids):
		print("moving motor left")
		print(right)
		if not right:
			motor1.start(0)
			time.sleep(.1)
			motor1.stop()
			right = True
			stopped = False
	else:
		print("returning to center")
		print(stopped)
		if not stopped:
			if left:
				motor1.start(0)
				time.sleep(.1)
				motor1.stop()
			else:
				motor1.start(1)
				time.sleep(.1)
				motor1.stop()
			left = False
			right = False
			stopped = True
	time.sleep(.1)


button.irq(trigger=Pin.IRQ_FALLING|Pin.IRQ_RISING, handler= flip_hands)

I dont want to look at this code anymore!!

Hardware

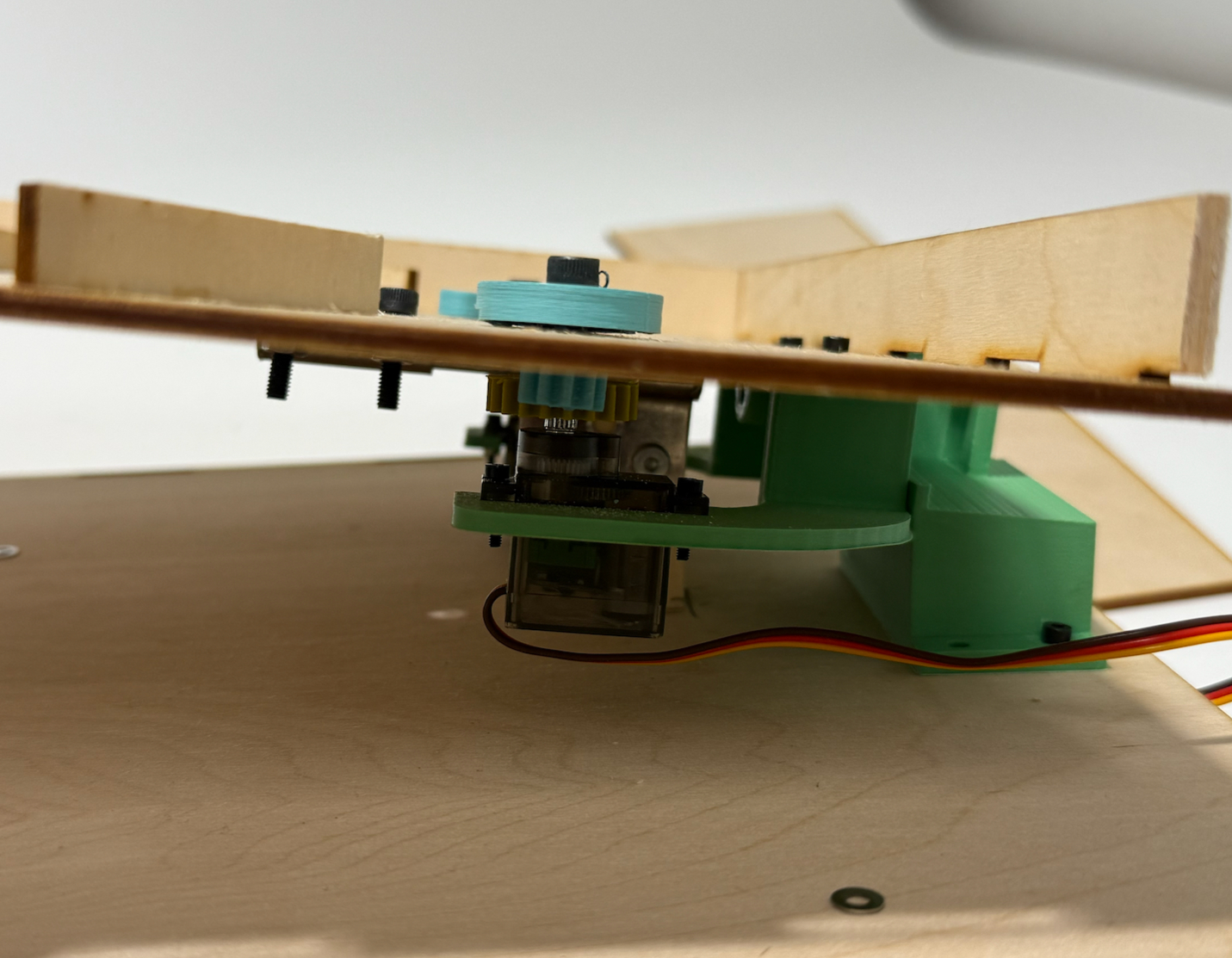

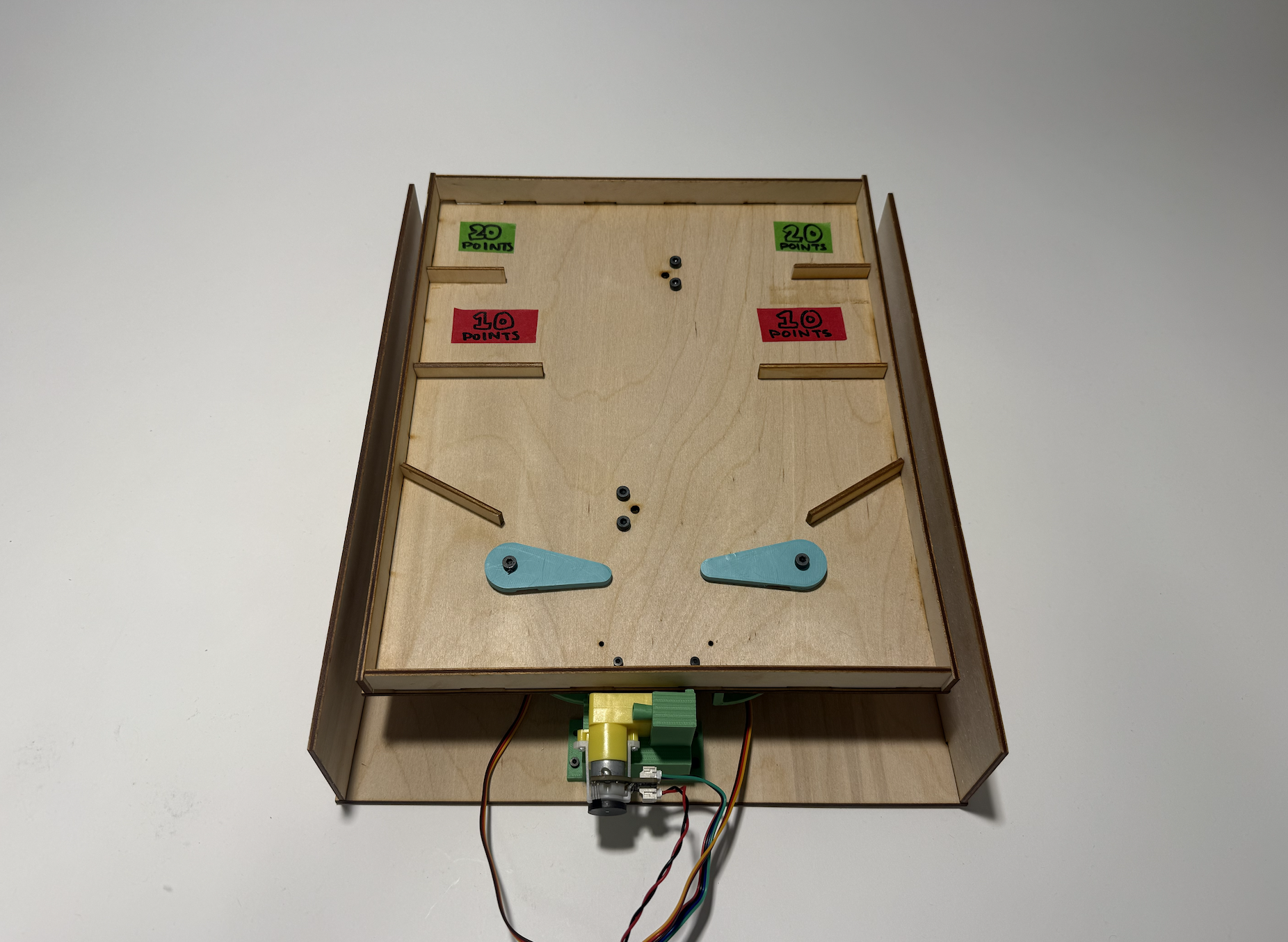

My primary contribution was in the hardware of the project. We created the frame out of laser cut wood, and 3D printed the flippers and its gears.

Challenges & Future Improvements

We had a really hard time with 3D printed gears. I would just save the effort and laser cut bigger gears in the future.

In the future, I would change the servo mount to be directly attatched to the board instead of attatched to the tilting mechanism. The current design leaves alot of room for error in the gears turning.
